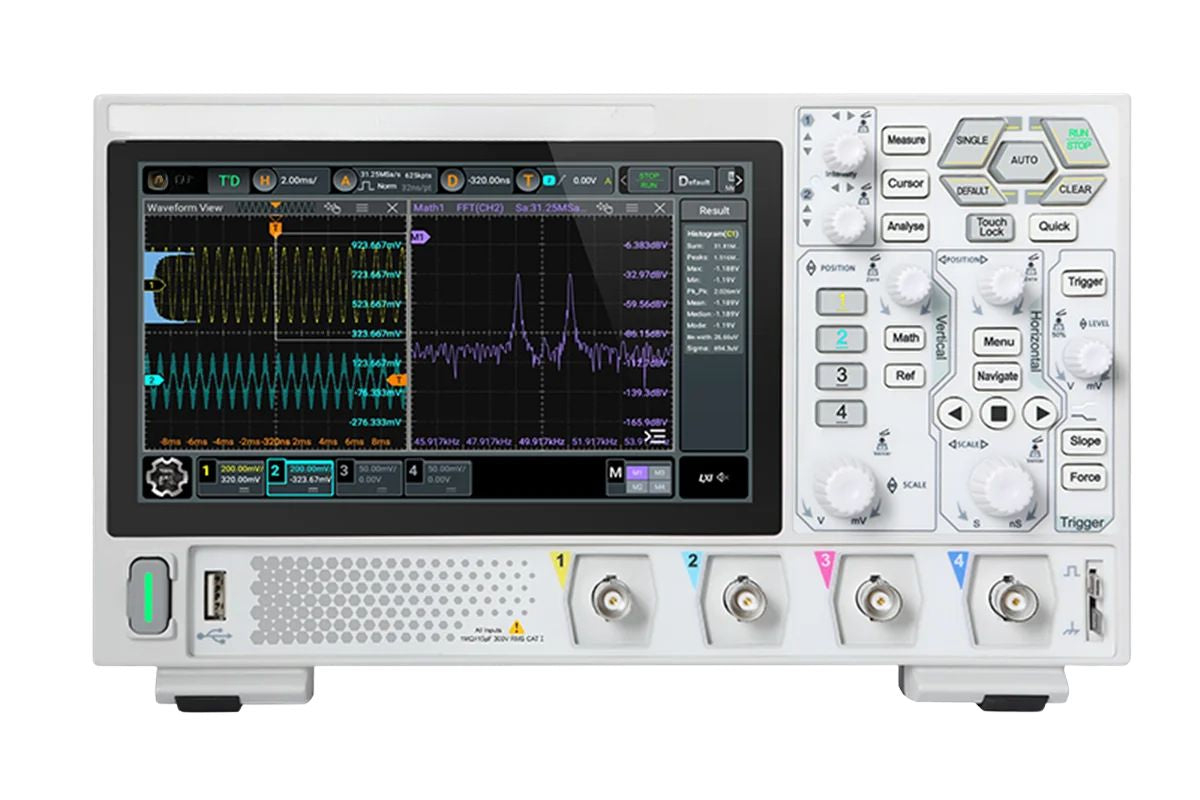

Built for electronics troubleshooting, circuit analysis and workshop testing, this digital oscilloscope delivers fast waveform capture and detailed signal monitoring in a compact bench setup. The 12-bit resolution helps display cleaner waveforms with improved detail, while the 7-inch touch display simplifies navigation during daily testing tasks. Suitable for Australian and New Zealand laboratories, repair benches and technical workspaces, it supports high sampling rates and deep memory depth for analysing complex electrical behaviour. With fast waveform capture, responsive touch controls and flexible channel options, this unit provides dependable performance for development, diagnostics and measurement applications.

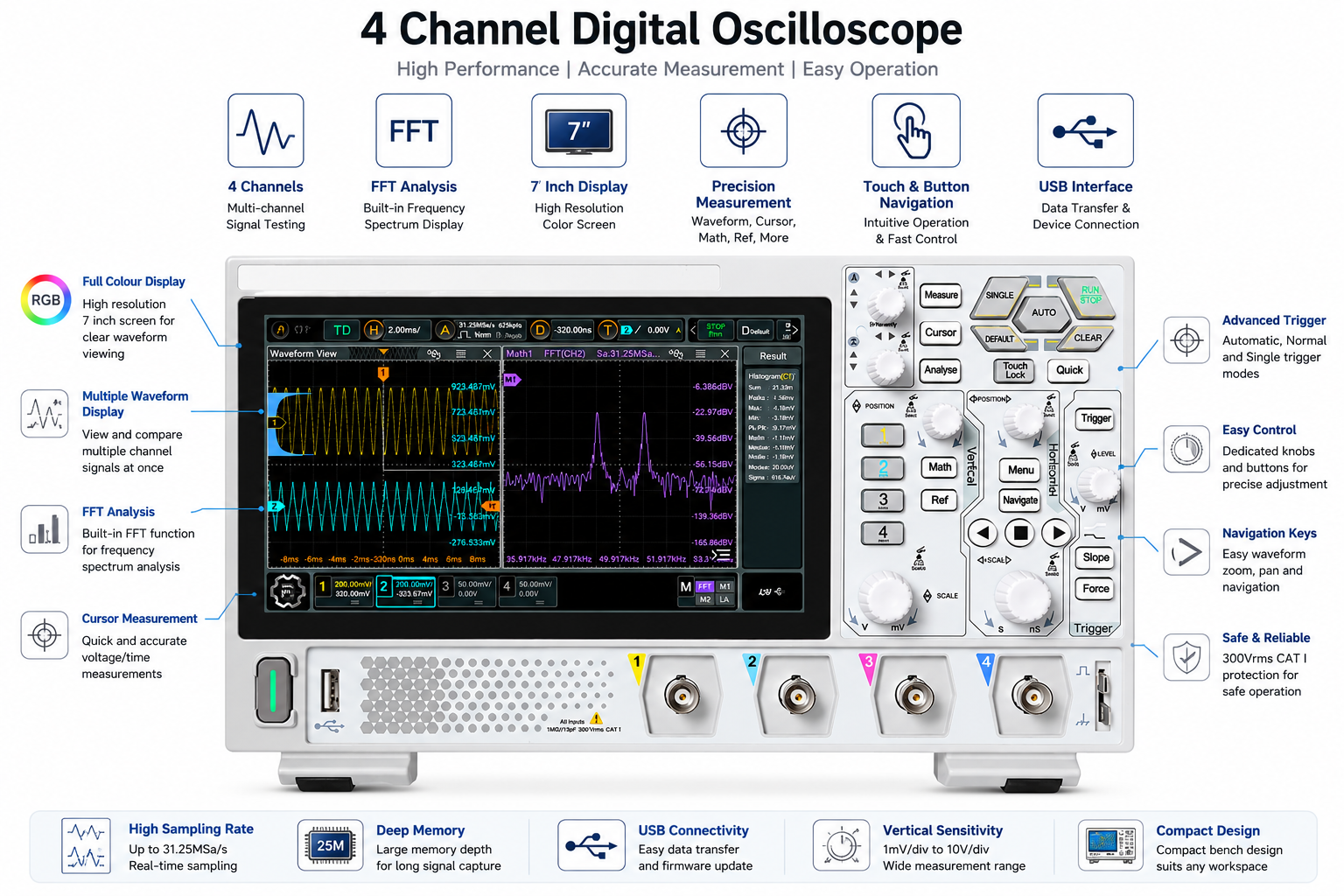

Key Features:

• 12-Bit Display – Provides clearer waveform detail with improved low-noise visual performance

• Fast Capture – Captures up to 1,000,000 waveforms per second for responsive signal analysis

• Touch Screen – 7-inch capacitive display allows quick menu access and easier navigation

• Deep Memory – 25Mpts record depth supports longer waveform analysis sessions

• Multiple Interfaces – USB, LAN and HDMI connectivity support flexible workspace integration

Specifications:

• Display Resolution: 1024 × 600

• Display Size: 7 inch

• Bandwidth: 100MHz

• Channels: 4

• Sampling Rate: 1.25GSa/s

• Record Length: 25Mpts

• Capture Rate: 1,000,000 waveforms/s

• Vertical Sensitivity: 500μV/div to 10V/div

• Power / Voltage: 220–240V, 50Hz

• Color: White

Package Contents:

• 1 × Digital oscilloscope

• 1 × Power cable

• 4 × Probe sets

• 1 × User manual
